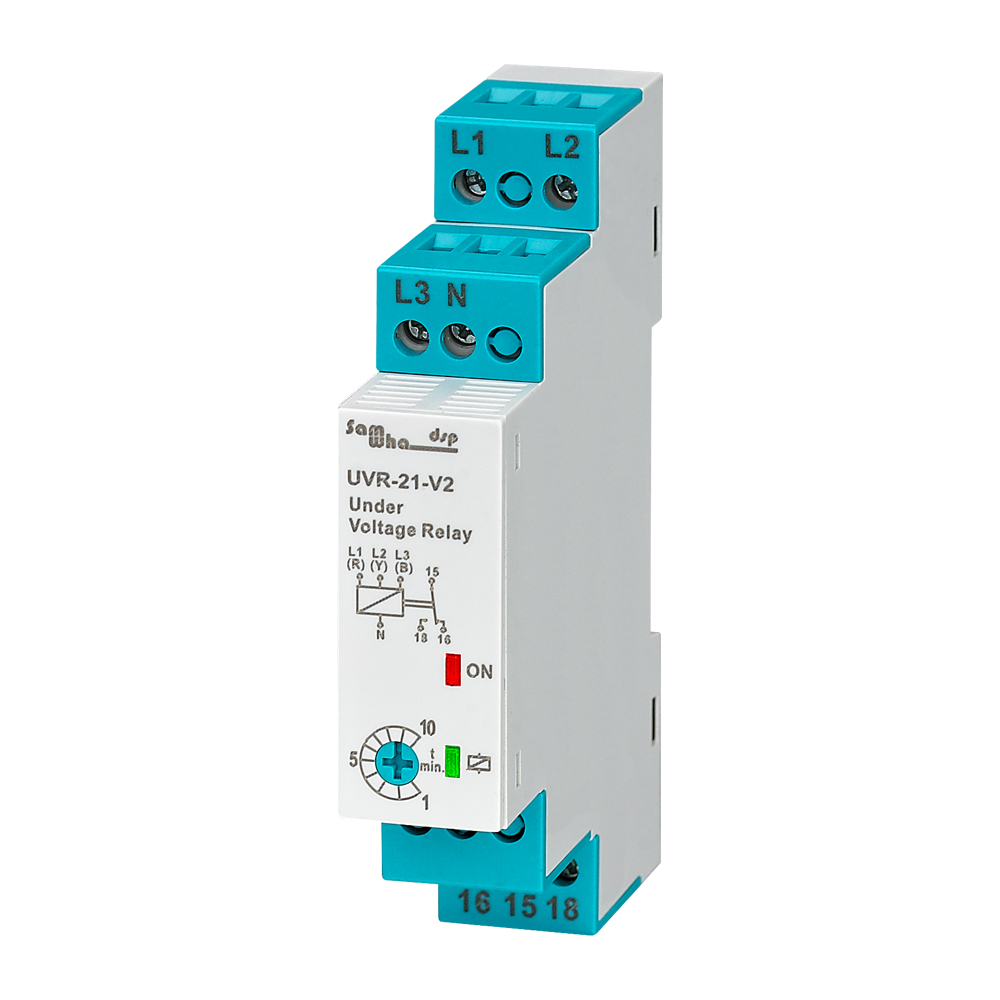

The UVR-21-V2 is a three-phase under-voltage control relay designed to protect electrical equipment from low voltage conditions and long-term voltage fluctuations. It monitors the supply voltage of 415V AC three-phase systems and controls the relay output according to the voltage status and delay time. With delayed under-voltage protection, LED indication, and DIN rail mounting, it is suitable for voltage monitoring and protection in control panels, distribution circuits, and three-phase electrical equipment.
• Rated Voltage: 415VAC + Neutral • Frequency: 50/60Hz • Under-voltage Trip Value: <170V • Recovery Voltage: >180V • Delay Time: 1–10min • Output Contact: 5A/250VAC Resistive Load • Power Consumption: <6VA • Operating Temperature: -20°C to +55°C • Display: ON LED and OUT LED • Mounting Type: Panel mounting or DIN rail mounting • Operating Altitude: <2000m • Cable Diameter: 1.5mm²
UVR-21-V2
Samwha-dsp
6977363273324
User Manual
