Digital Smart Power

Digital Phase Protection Relays

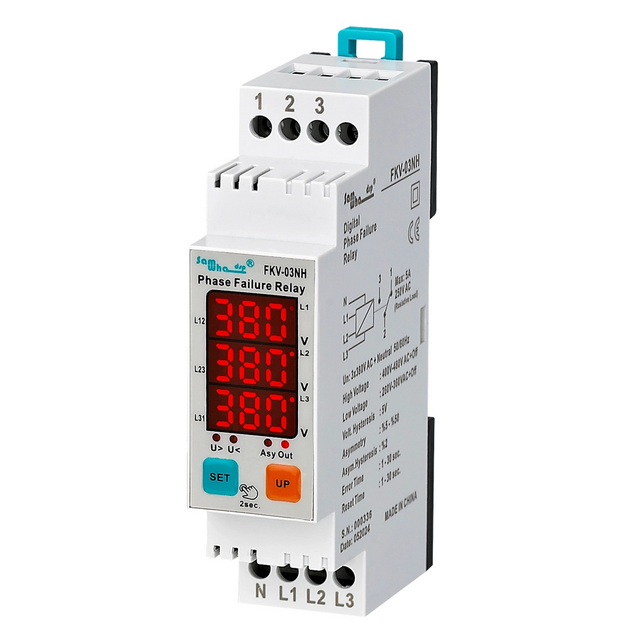

  • FKV-03NH
    FKV-03NH
    Model: FKV-03NH
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Over Voltage : 400V – 480V AC+Off (Adjustable)
    ◉ Under Voltage : 260V – 360V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
    ◉ Neutral-Off Protection
     Inquire

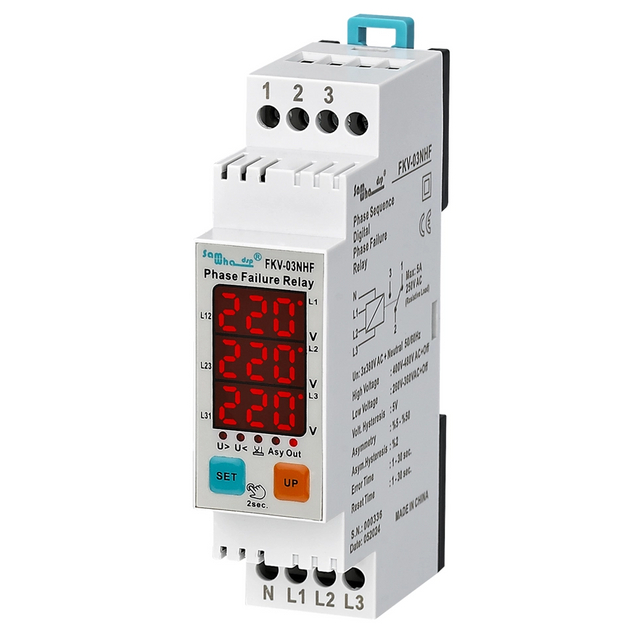

  • FKV-03NHF
    FKV-03NHF
    Model: FKV-03NHF
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Over Voltage : 400V – 480V AC+Off (Adjustable)
    ◉ Under Voltage : 260V – 360V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
    ◉ Phase Sequence Protection
    ◉ Neutral-Off Protection
     Inquire

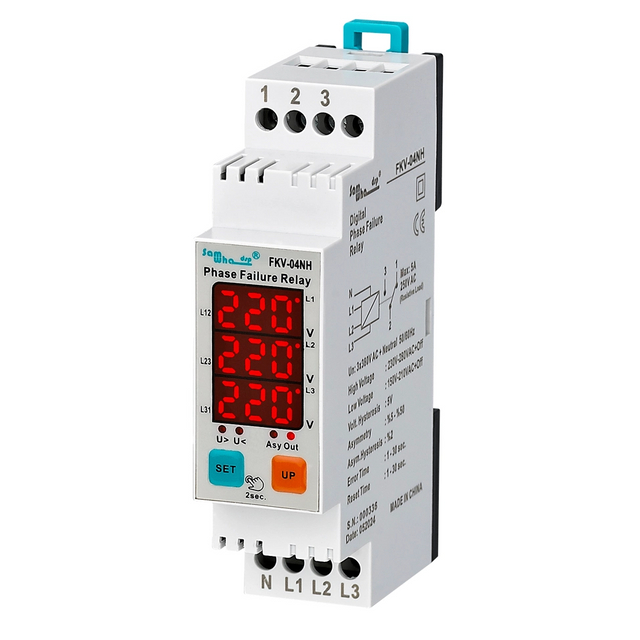

  • FKV-04NH
    FKV-04NH
    Model: FKV-04NH
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Over Voltage : 230V – 300V AC+Off (Adjustable)
    ◉ Under Voltage : 150V – 210V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
    ◉ Neutral-Off Protection
     Inquire

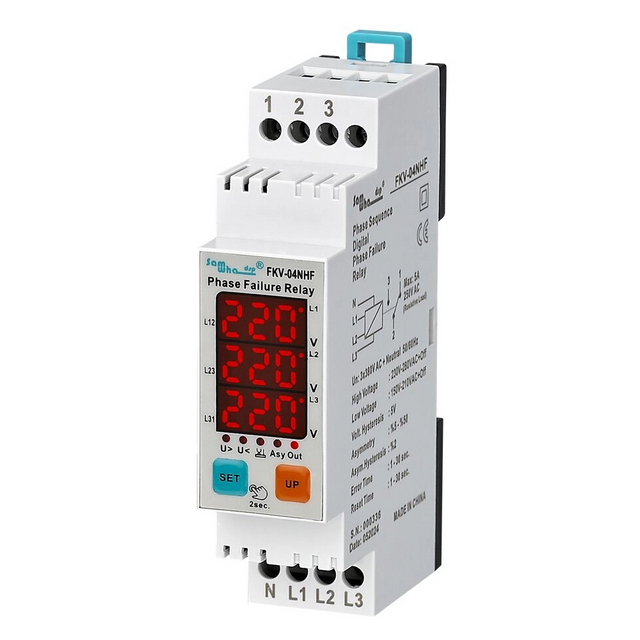

  • FKV-04NHF
    FKV-04NHF
    Model: FKV-04NHF
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Over Voltage : 230V – 300V AC+Off (Adjustable)
    ◉ Under Voltage : 150V – 210V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
    ◉ Phase Sequence Protection
    ◉ Neutral-Off Protection
     Inquire

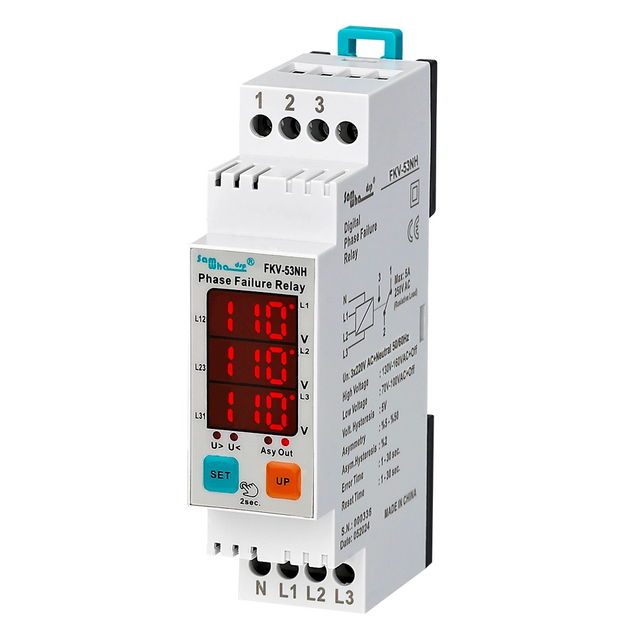

  • FKV-53NH
    FKV-53NH
    Model: FKV-53NH
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*220VAC+Neutral)
    ◉ Over Voltage : 130V – 160V AC+Off (Adjustable)
    ◉ Under Voltage : 70V – 100V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
    ◉ Neutral-Off Protection
     Inquire

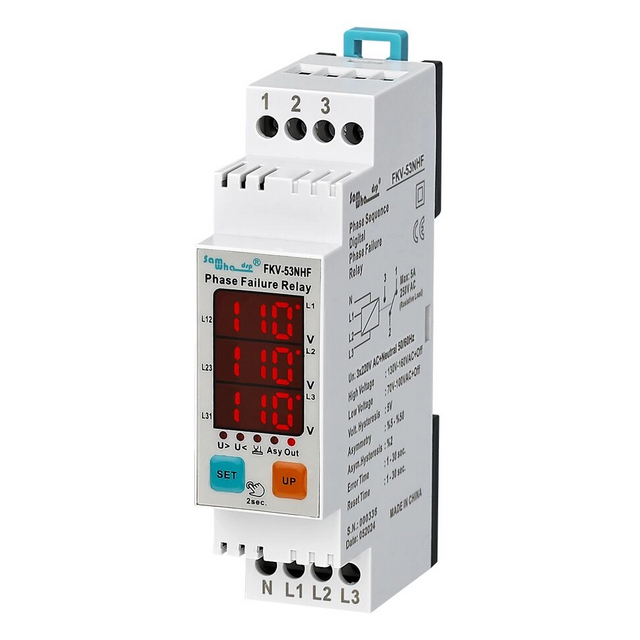

  • FKV-53NHF
    FKV-53NHF
    Model: FKV-53NHF
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*220VAC+Neutral)
    ◉ Over Voltage : 130V – 160V AC+Off (Adjustable)
    ◉ Under Voltage : 70V – 100V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
    ◉ Phase Sequence Protection
    ◉ Neutral-Off Protection
     Inquire

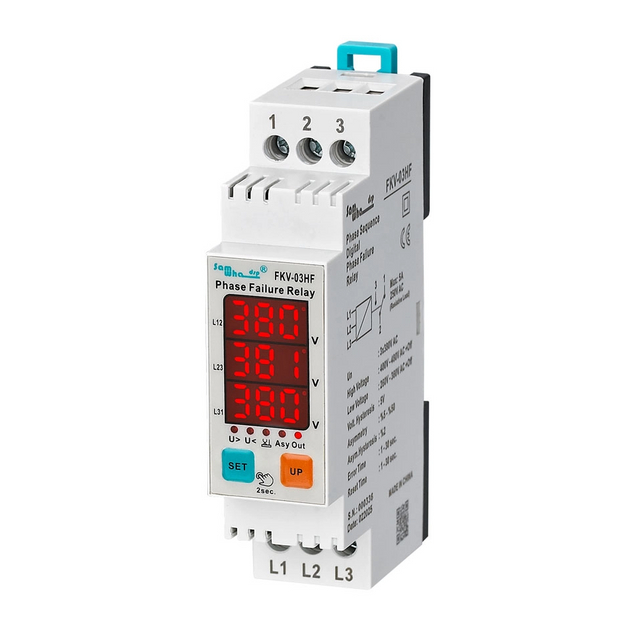

  • FKV-03HF
    FKV-03HF
    Model: FKV-03HF
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&3W System (3*380VAC)
    ◉ Over Voltage : 400V – 480V AC+Off (Adjustable)
    ◉ Under Voltage : 260V – 360V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
     Inquire
  • FKV-53HF
    FKV-53HF
    Model: FKV-53HF
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&3W System (3*220VAC)
    ◉ Over Voltage : 230V – 280V AC+Off (Adjustable)
    ◉ Under Voltage : 150V – 210V AC+Off (Adjustable)
    ◉ Asymmetry : %5 – %50 (Adjustable)
    ◉ Error Waiting Time : 1sec. – 30sec. (Adjustable)
    ◉ Reset Time : 1sec. – 30sec. (Adjustable)
     Inquire

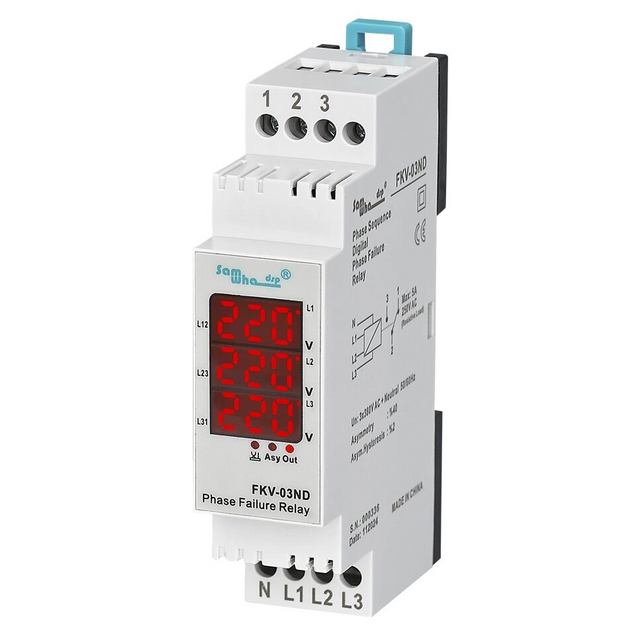

  • FKV-03ND
    FKV-03ND
    Model: FKV-03ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Neutral-Off Protection
     Inquire

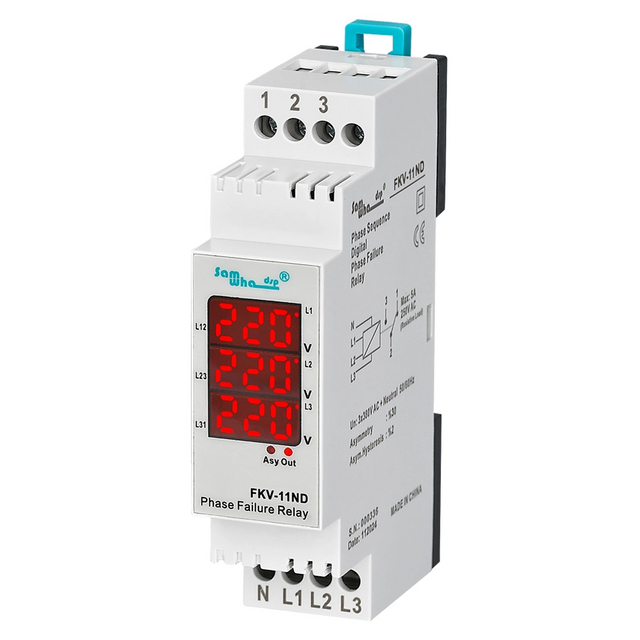

  • FKV-11ND
    FKV-11ND
    Model: FKV-11ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Asymmetry : %30 (Fixed)
    ◉ Neutral-Off Protection
    ◉ Without Phase Sequence Protection
     Inquire
  • FKV-12ND
    FKV-12ND
    Model: FKV-12ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Neutral-Off Protection
    ◉ Without Phase Sequence Protection
     Inquire

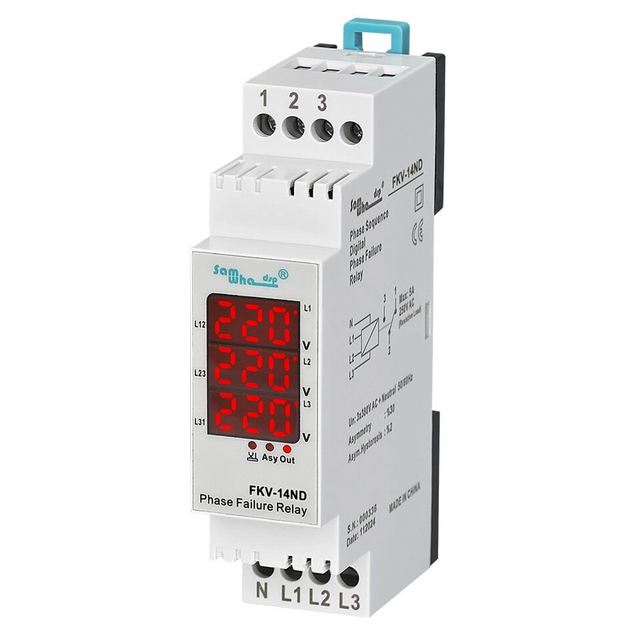

  • FKV-14ND
    FKV-14ND
    Model: FKV-14ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Asymmetry : %30 (Fixed)
    ◉ Neutral-Off Protection
     Inquire

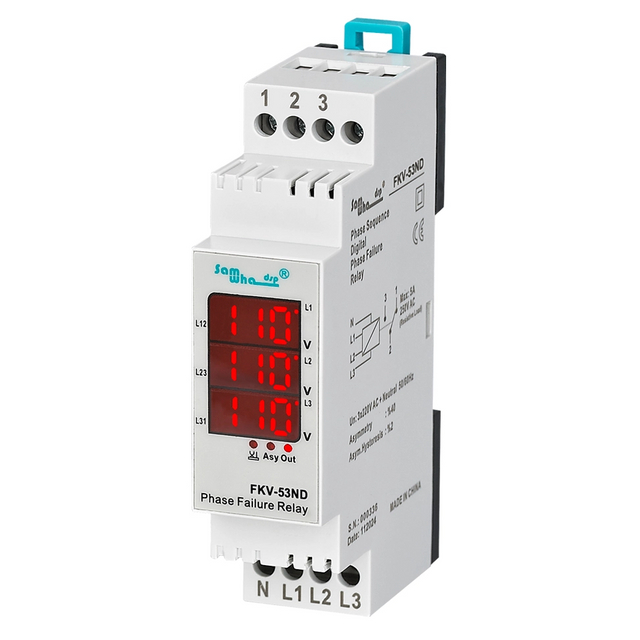

  • FKV-53ND
    FKV-53ND
    Model: FKV-53ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&4W System (3*220VAC+Neutral)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Neutral-Off Protection
     Inquire

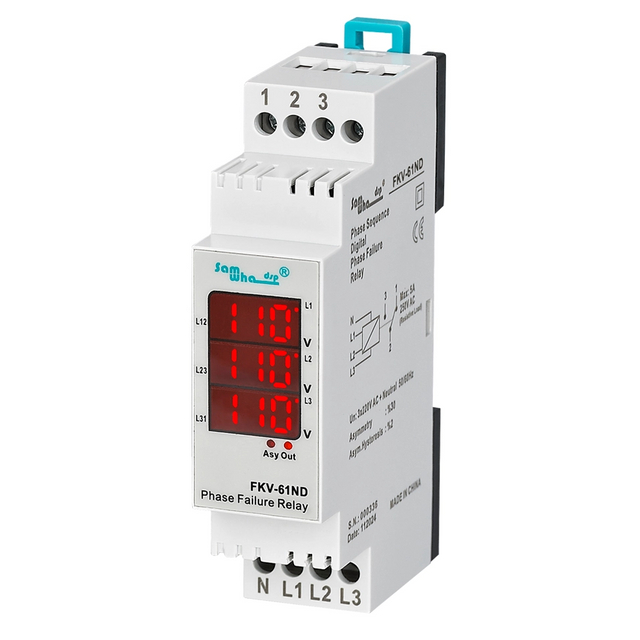

  • FKV-61ND
    FKV-61ND
    Model: FKV-61ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Asymmetry : %30 (Fixed)
    ◉ Neutral-Off Protection
    ◉ Without Phase Sequence Protection
     Inquire

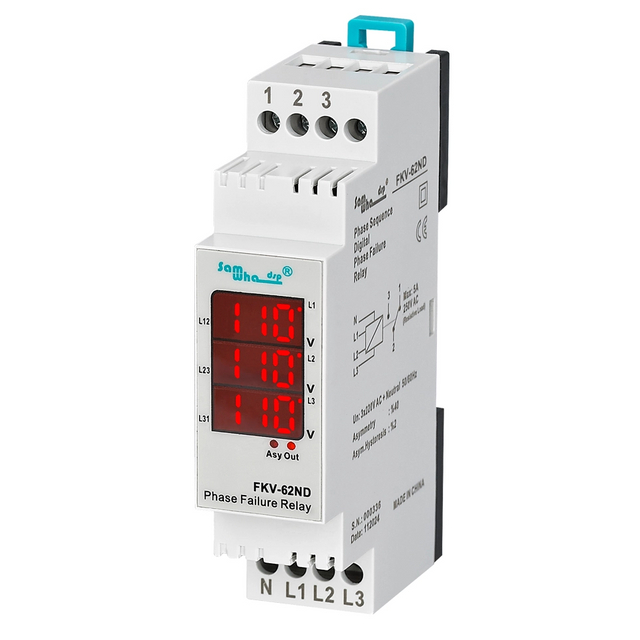

  • FKV-62ND
    FKV-62ND
    Model: FKV-62ND
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&4W System (3*380VAC+Neutral)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Neutral-Off Protection
    ◉ Without Phase Sequence Protection
     Inquire

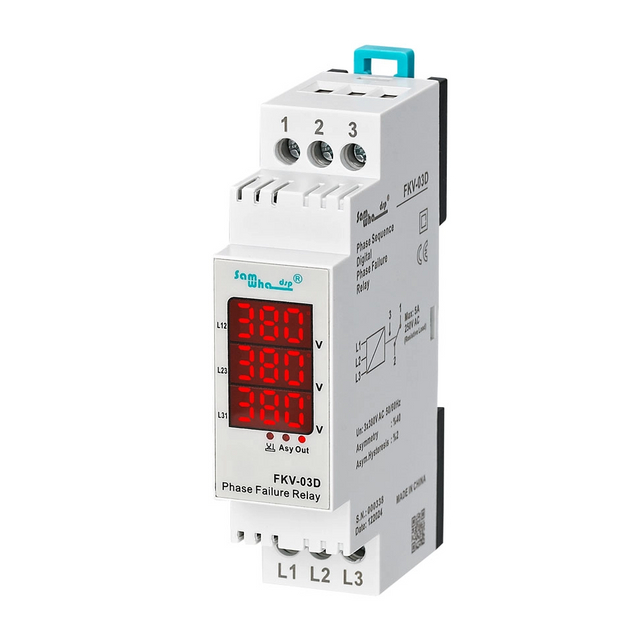

  • FKV-03D
    FKV-03D
    Model: FKV-03D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&3W System (3*380VAC)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Phase Sequence Protection
     Inquire

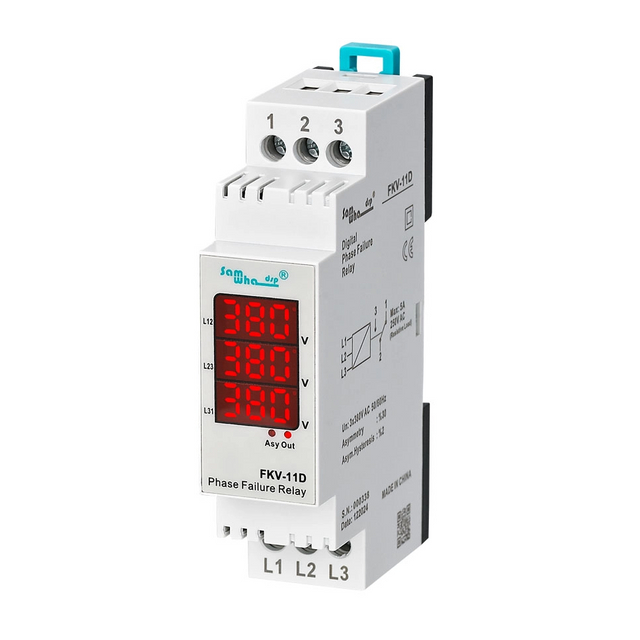

  • FKV-11D
    FKV-11D
    Model: FKV-11D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&3W System (3*380VAC)
    ◉ Asymmetry : %30 (Fixed)
    ◉ Without Phase Sequence Protection
     Inquire

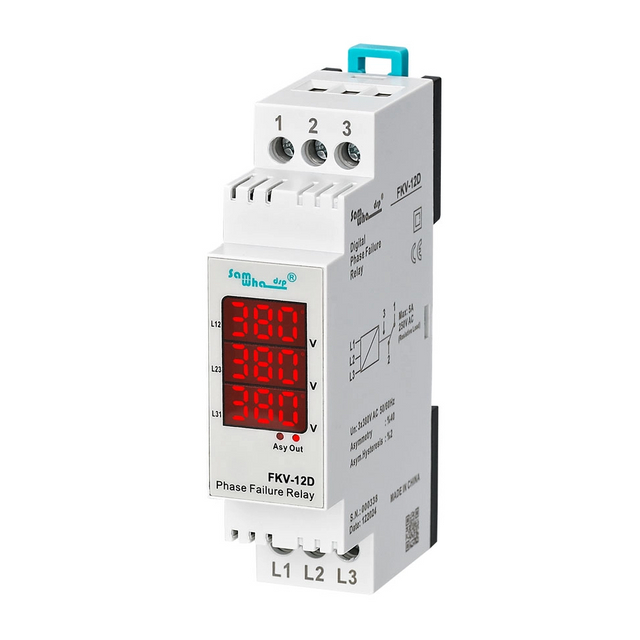

  • FKV-12D
    FKV-12D
    Model: FKV-12D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&3W System (3*380VAC)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Without Phase Sequence Protection
     Inquire

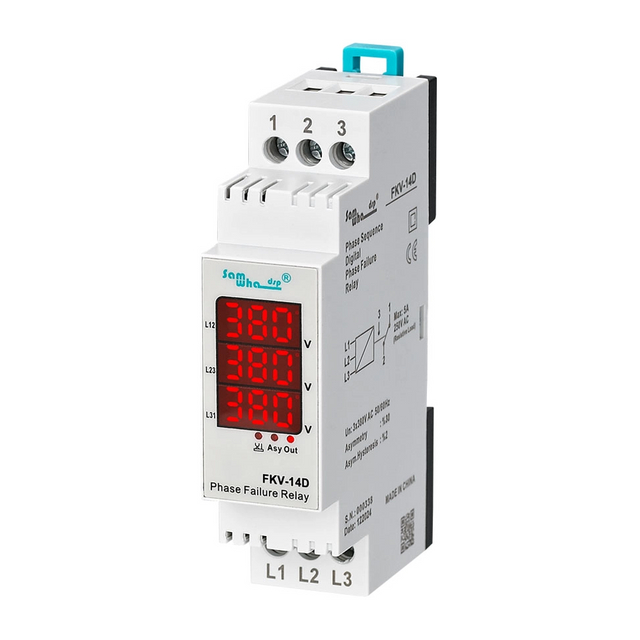

  • FKV-14D
    FKV-14D
    Model: FKV-14D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&3W System (3*380VAC)
    ◉ Asymmetry : %30 (Fixed)
    ◉ Phase Sequence Protection
     Inquire
  • FKV-53D
    FKV-53D
    Model: FKV-53D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as reverse sequence, phase lost, unbalance, etc.

    ◉ 3P&3W System (3*220VAC)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Phase Sequence Protection
     Inquire

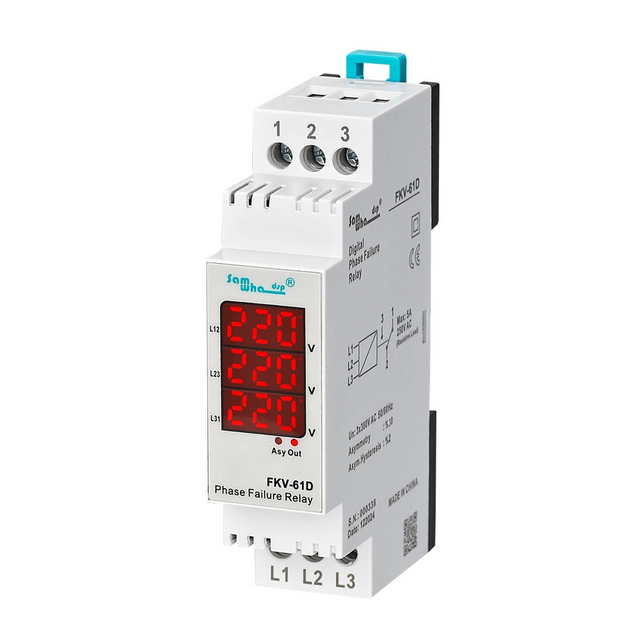

  • FKV-61D
    FKV-61D
    Model: FKV-61D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&3W System (3*220VAC)
    ◉ Asymmetry : %30 (Fixed)
    ◉ Without Phase Sequence Protection
     Inquire

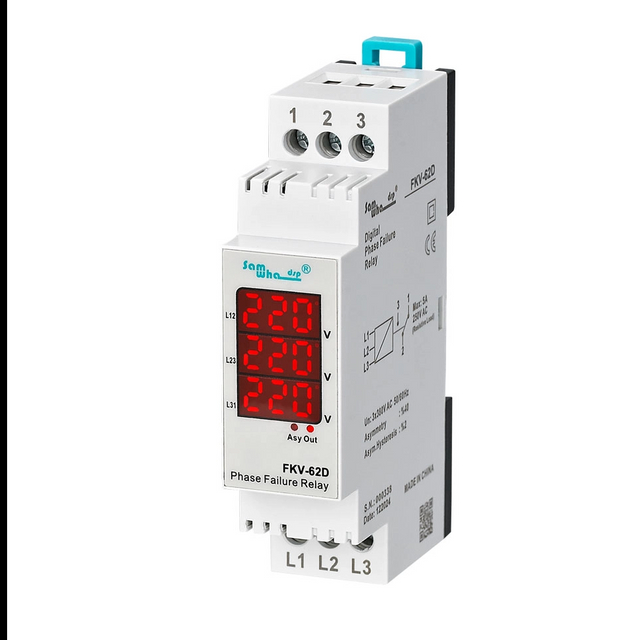

  • FKV-62D
    FKV-62D
    Model: FKV-62D
    Brief:
      Phase protection relays are designed to protect three-phase loads from damage caused by faulty voltages such as phase lost, unbalance, etc.

    ◉ 3P&3W System (3*220VAC)
    ◉ Asymmetry : %40 (Fixed)
    ◉ Without Phase Sequence Protection
     Inquire

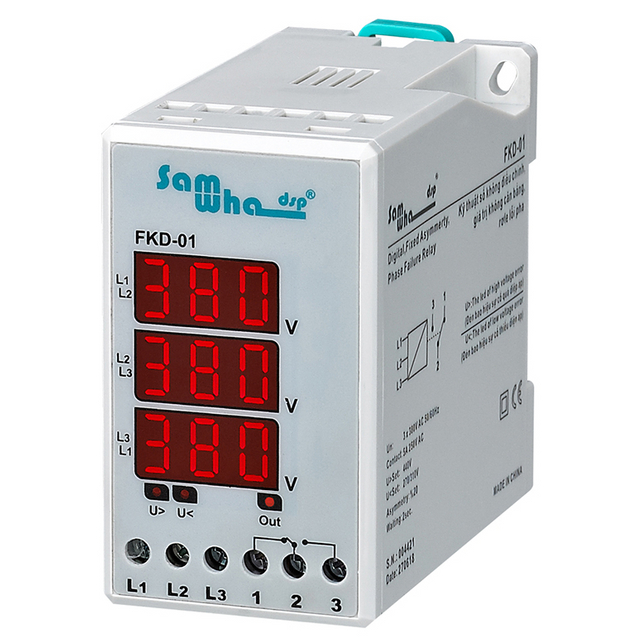

  • FKD-01
    FKD-01
    Model:
    Brief:
    3x380VAC. Asym: %20(Fixed). U<270VAC(Fixed). U>:440VAC(Fixed).
     Inquire

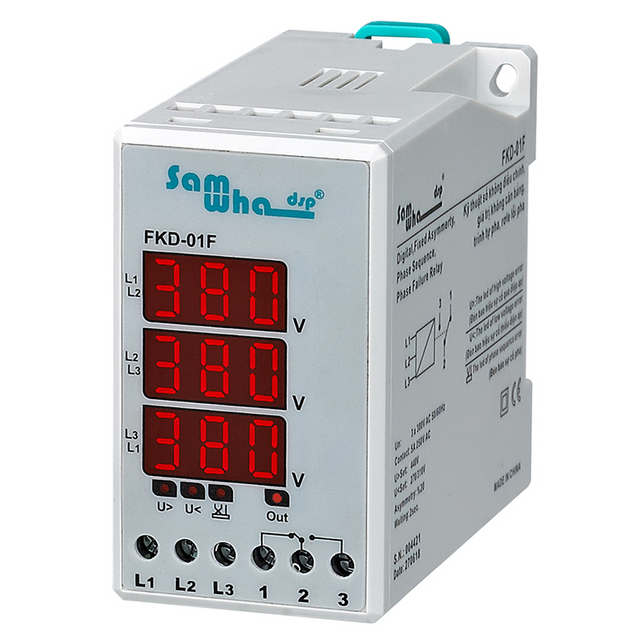

  • FKD-01F
    FKD-01F
    Model:
    Brief:
    3x380VAC. Asym: %20(Fixed). U<270VAC(Fixed). U>:440VAC(Fixed). With Phase Sequence.
     Inquire

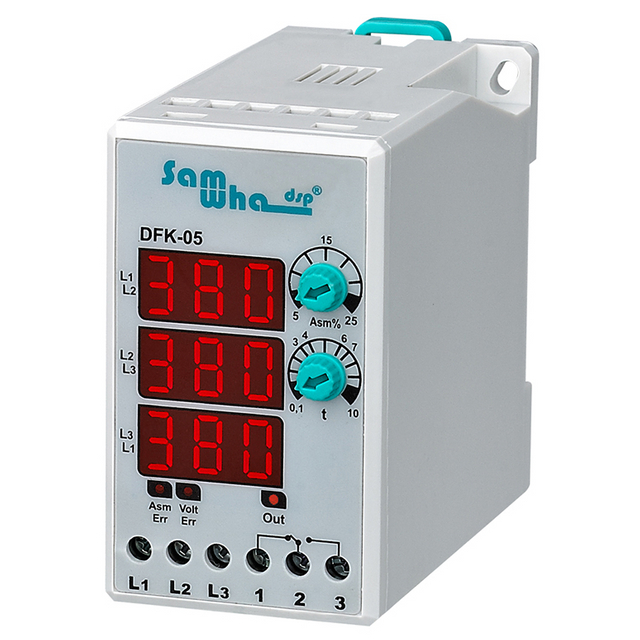

  • DFK-05
    DFK-05
    Model:
    Brief:
    3x380VAC. Asym: %5-%20. U<180VAC(Fixed). U>:460VAC(Fixed).
     Inquire

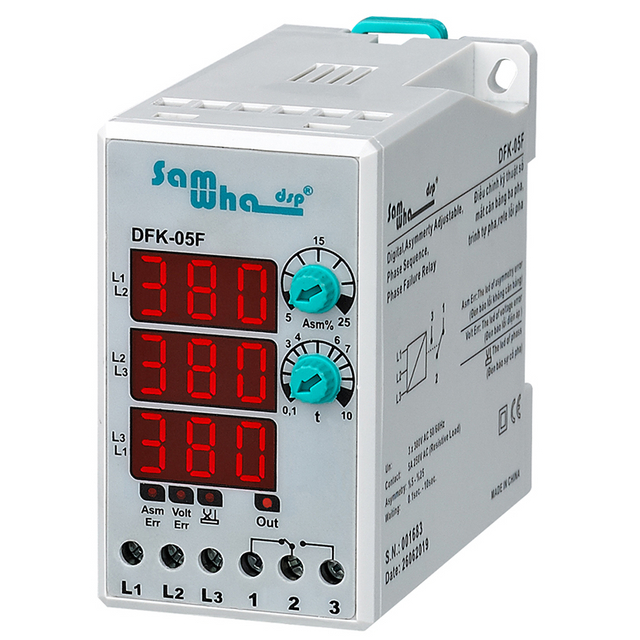

  • DFK-05F
    DFK-05F
    Model:
    Brief:
    3x380VAC. Asym: %5-%20. U<180VAC(Fixed). U>:460VAC(Fixed). With Phase Sequence.
     Inquire
