Digital Smart Power

Temperature Control Relays

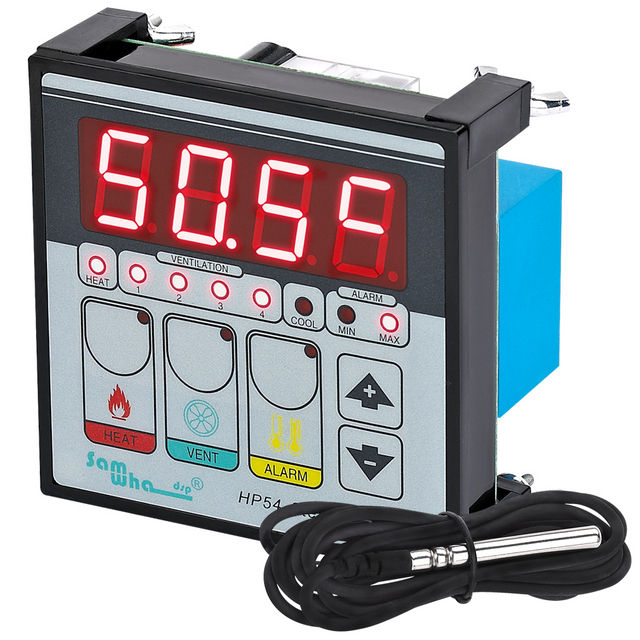

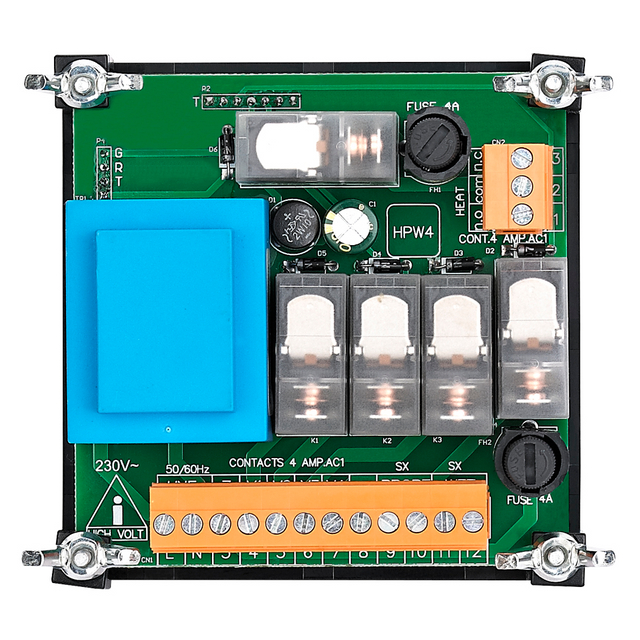

  • HP54
    Model:
    Brief:
    4 step ventilation and thermoreg.

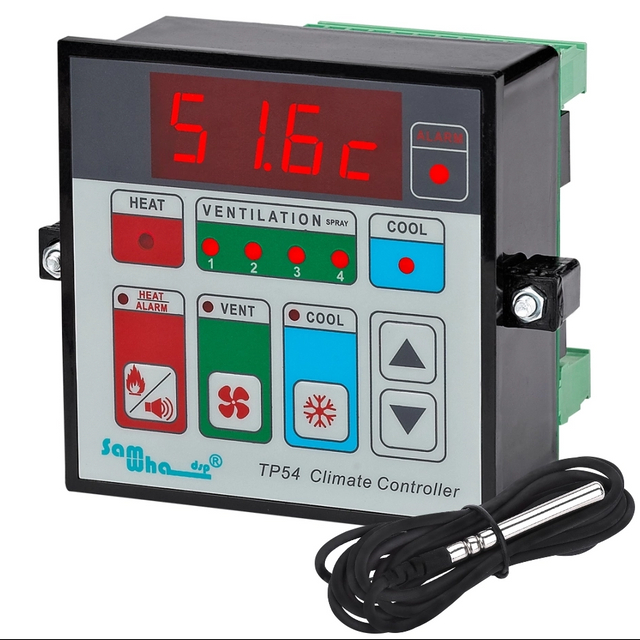

  • TP54
    Model: TP54
    Brief:
    Temperature Control Function

    Humidity ControlFunction (Sensors areordered separately)

    Fan Control Relay ---x4

    Cooling Control Relay --- x1

    Spray (OPT) Control Relay ---x1

    Heating Control Relay --- x1

    Alarm Control Relay --- x1

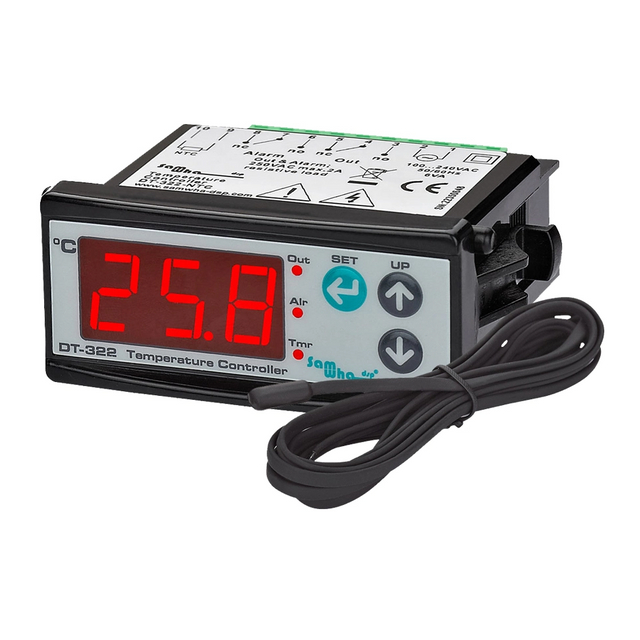

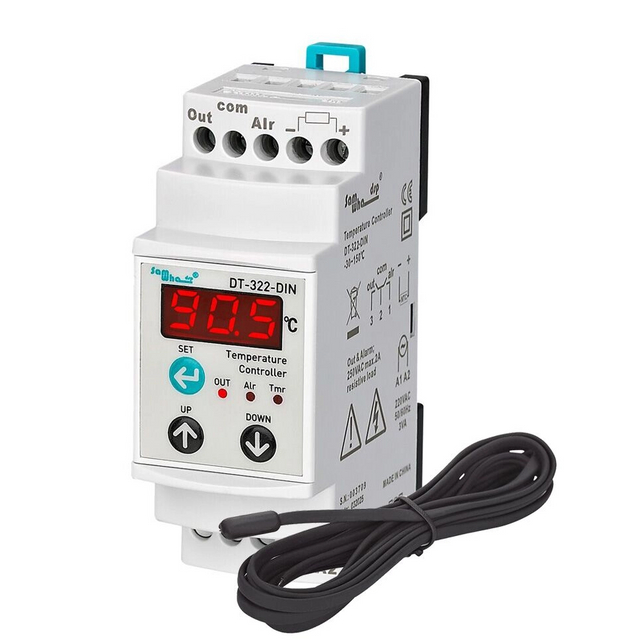

  • DT-322
    Model: DT-322
    Brief:
      Digital temperature control relays are designed to keep the temperature of the environments requiring temperature dependent control at the set value.

    ◉ Measuring and Control Scale: -19.9 °C – +99.9 °C.
    ◉ Microprocessor Based, PID Temperature Controller.
    ◉ Sensor Type: NTC.
    ◉ ON-OFF Control Form.
    ◉ OUT and ALARM Outputs.
    ◉ Selectable Heating and Cooling Function.
    ◉ Upper and Lower Limit for SET and ALARM Settings.
    ◉ Adjustable Separate Hysteresis for SET and ALARM Settings.
    ◉ Selectable Relative, Absolute or Band Alarm.
    ◉ ON-delay for OUT in Cooling Mode.
    ◉ Adjustable ON/OFF Timers for OUT Output in Case of Sensor Failure.
    ◉ Input “Offset” Feature.
    ◉ Excellent Linearity with °C/mV and °C/W Look-up Tables.
    ◉ Password Protection.
    ◉ High Accuracy.
    ◉ EEPROM Memory to Store Settings.
    ◉ Easy Connection with Plug-in Connectors.

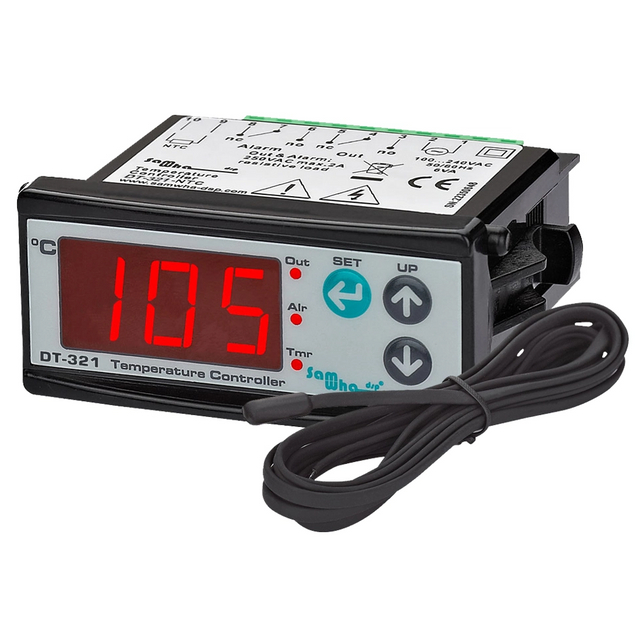

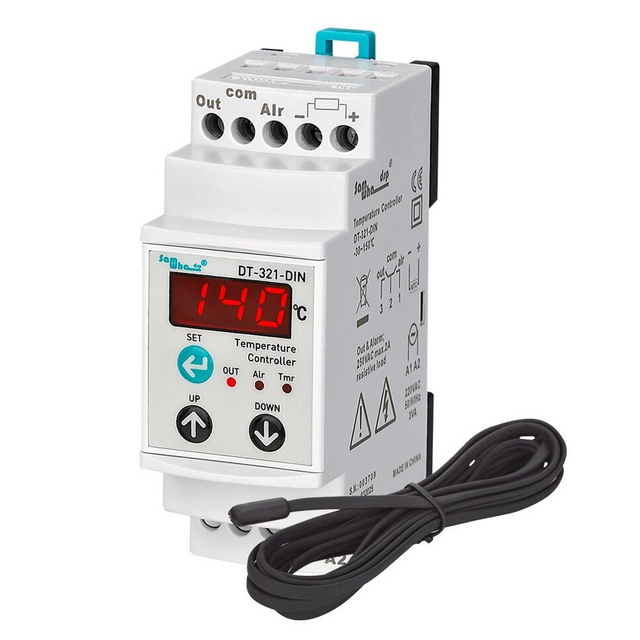

  • DT-321
    Model: DT-321
    Brief:
      Digital temperature control relays are designed to keep the temperature of the environments requiring temperature dependent control at the set value.

    ◉ Measuring and Control Scale: -30 °C – +150 °C.
    ◉ Microprocessor Based, PID Temperature Controller.
    ◉ Sensor Type: NTC.
    ◉ ON-OFF Control Form.
    ◉ OUT and ALARM Outputs.
    ◉ Selectable Heating and Cooling Function.
    ◉ Upper and Lower Limit for SET and ALARM Settings.
    ◉ Adjustable Separate Hysteresis for SET and ALARM Settings.
    ◉ Selectable Relative, Absolute or Band Alarm.
    ◉ ON-delay for OUT in Cooling Mode.
    ◉ Adjustable ON/OFF Timers for OUT Output in Case of Sensor Failure.
    ◉ Input “Offset” Feature.
    ◉ Excellent Linearity with °C/mV and °C/W Look-up Tables.
    ◉ Password Protection.
    ◉ High Accuracy.
    ◉ EEPROM Memory to Store Settings.
    ◉ Easy Connection with Plug-in Connectors.
