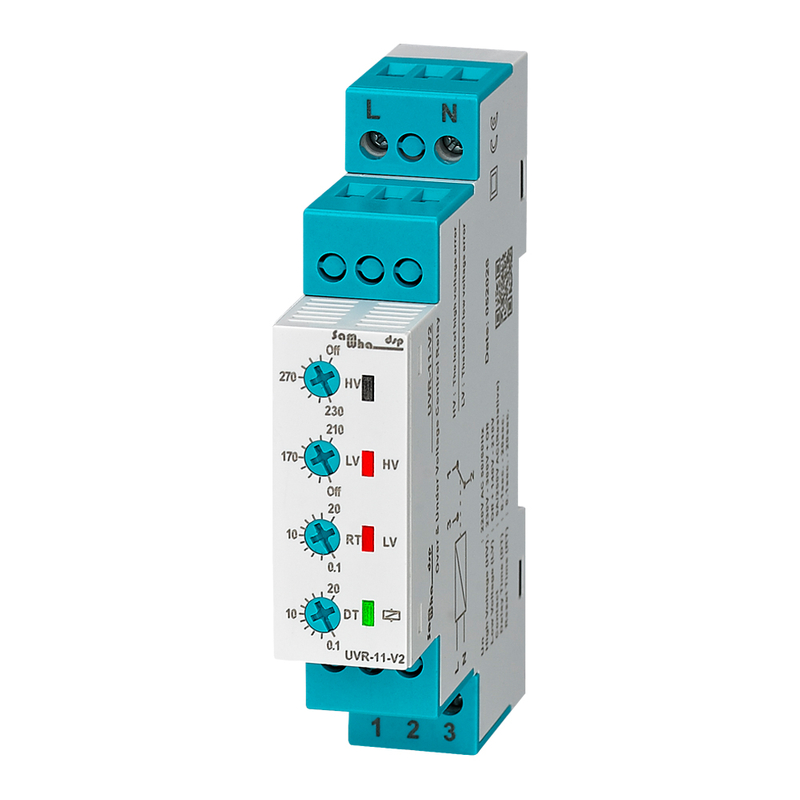

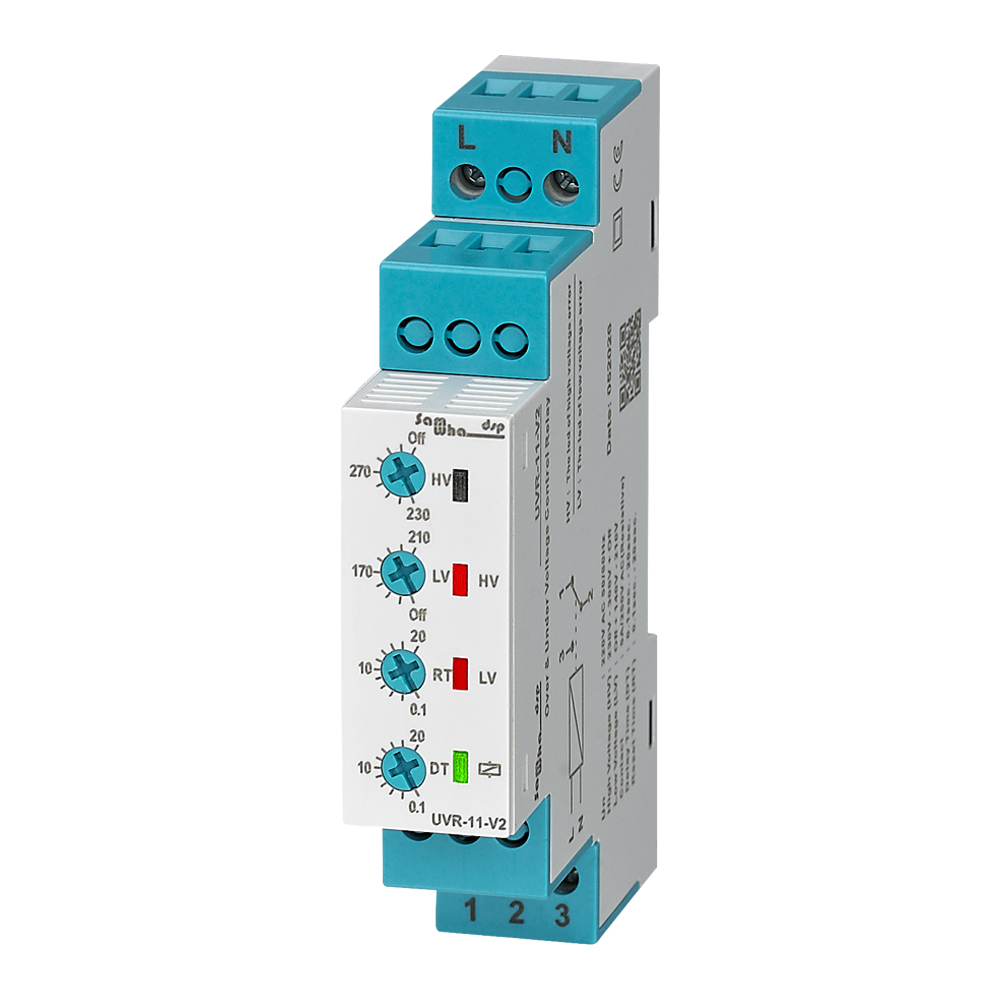

UVR-11-V2 Single Phase Over and Under Voltage Control Relay
Availability:
The UVR-11-V2 is a single-phase over-voltage and under-voltage control relay designed to protect electrical equipment from abnormal mains voltage. With adjustable voltage settings, delay time, and reset time, it ensures safe and stable operation of single-phase electrical systems.
• Rated Voltage: 220VAC 50/60Hz • Over-voltage Setting: 230–300V + OFF • Under-voltage Setting: 140–210V + OFF • Delay Time: 0.5–20s • Reset Time: 0.5–20s • Output Contact: 5A 250VAC Resistive Load • Power Consumption: <6VA • Operating Temperature: -20°C to +55°C • Display: 3 LED Indicators • Mounting Type: DIN Rail • Cable Diameter: 2.5mm²
