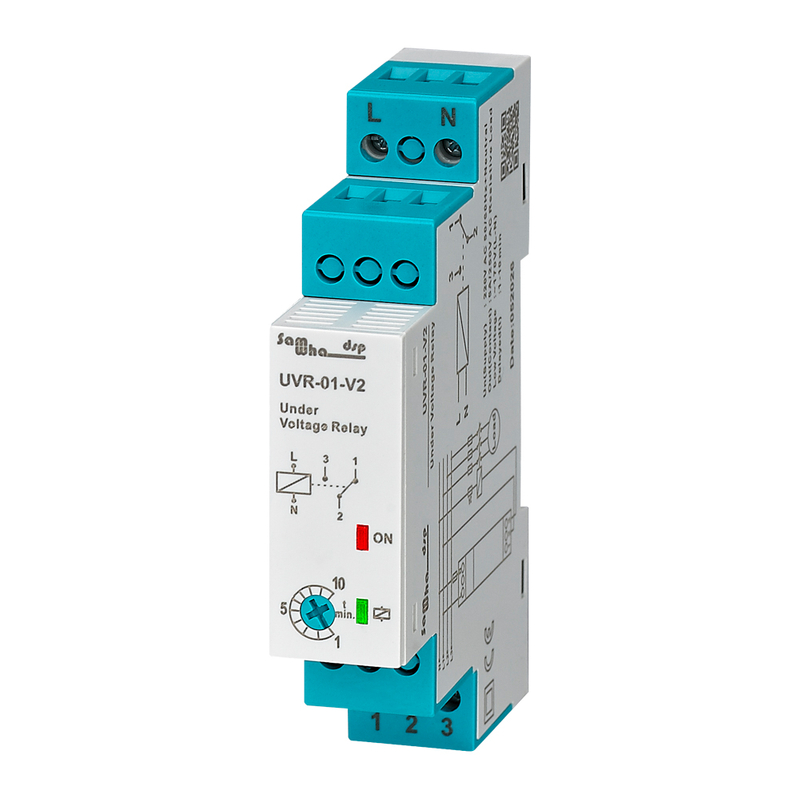

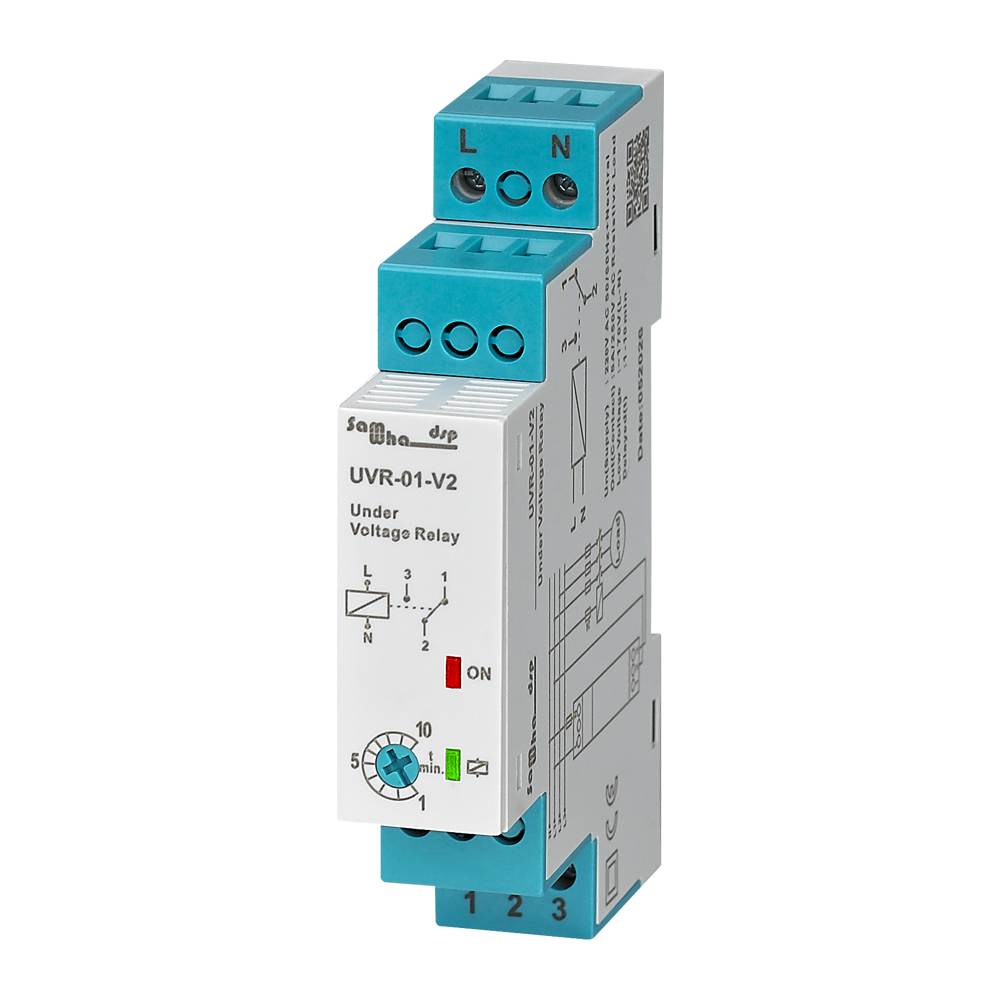

UVR-01-V2 Single Phase Under Voltage Control Relay

  The UVR-01-V2 is a single-phase under-voltage control relay designed to protect electrical equipment from low voltage conditions and long-term voltage fluctuations. It monitors the supply voltage of 220V AC single-phase systems and controls the relay output according to the voltage status and delay time. With delayed under-voltage protection, LED indication, and DIN rail mounting, it is suitable for voltage monitoring and protection in control panels, distribution circuits, and single-phase electrical equipment.

• Rated Voltage: 220VAC + Neutral
• Frequency: 50/60Hz
• Under-voltage Trip Value: <170V
• Recovery Voltage: >180V
• Delay Time: 1–10min
• Output Contact: 5A/250VAC Resistive Load
• Power Consumption: <6VA
• Operating Temperature: -20°C to +55°C
• Display: ON LED and OUT LED
• Mounting Type: Panel mounting or DIN rail mounting
• Operating Altitude: <2000m
• Cable Diameter: 1.5mm²
