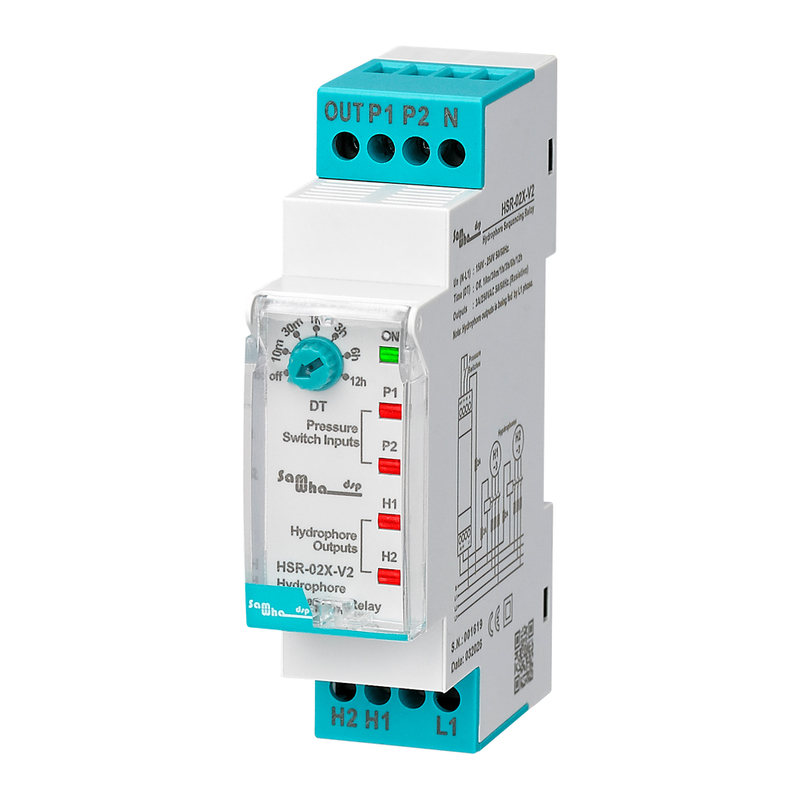

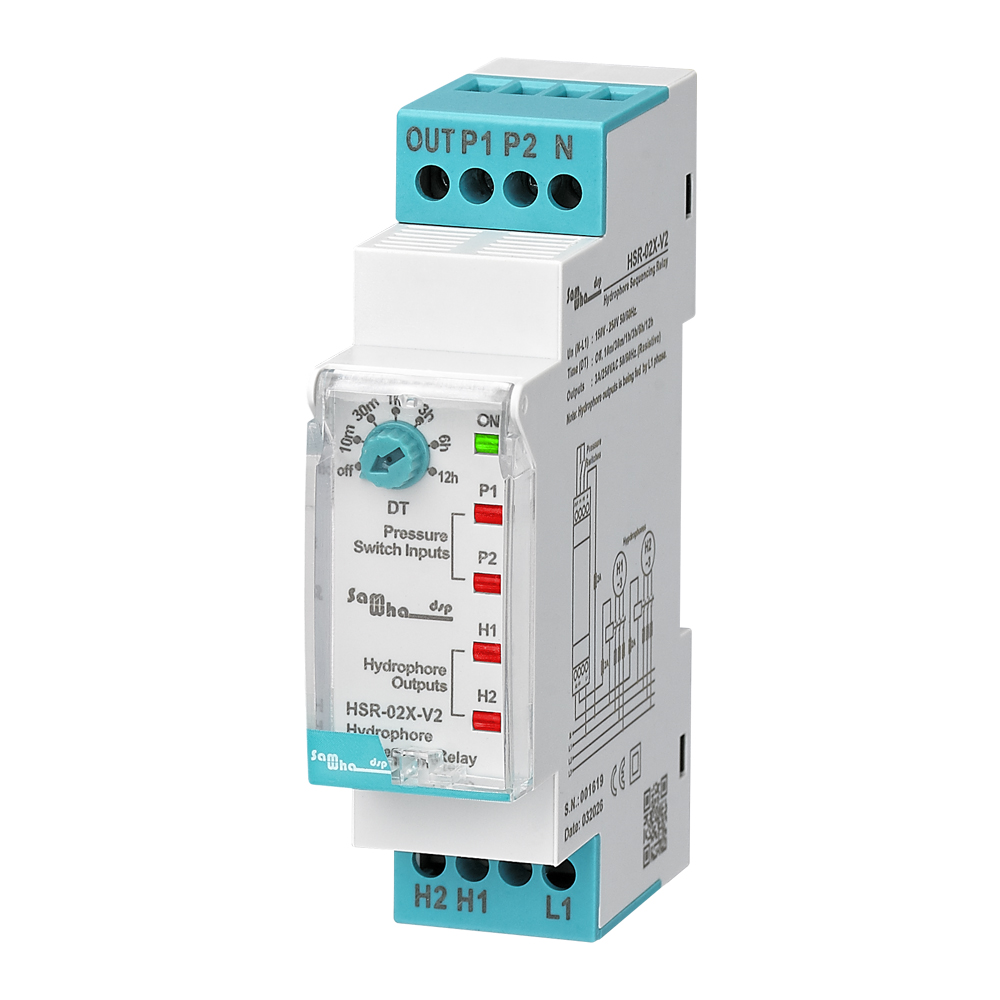

HSR-02X-V2 pump control relay is designed for automatic operation of dual pump systems based on pressure signals.
With 2 pressure switch inputs and 2 pump outputs, it enables intelligent pump control to maintain stable system pressure and ensure efficient water supply.
The built-in alternating function distributes running time evenly between pumps, reducing mechanical wear and extending equipment lifespan.
A key feature of this model is the adjustable working time, allowing flexible settings (OFF, 10min, 30min, 1hr, 3hr, 6hr, 12hr) to match different system requirements.
Widely used in hydrophore systems, booster pump stations, and water supply systems, it provides a reliable and cost-effective solution for pump automation.
· 2x Pressure Switch Inputs
· 2x Hydrophore Outputs
· Hydrophore Working Time Adjustable (Off, 10min, 30min, 1hr, 3hr, 6hr and 12hr.)
