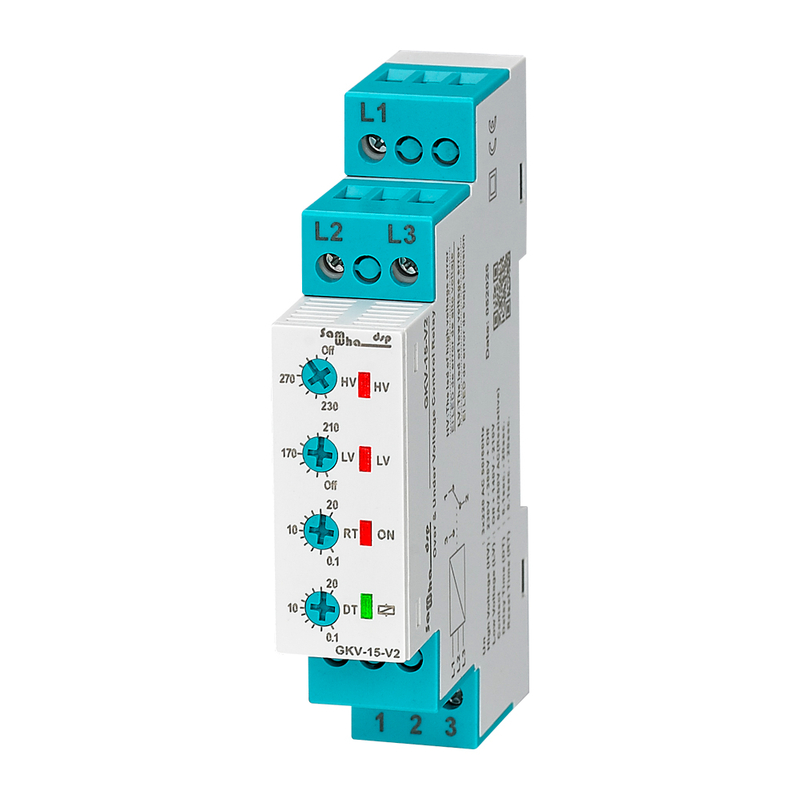

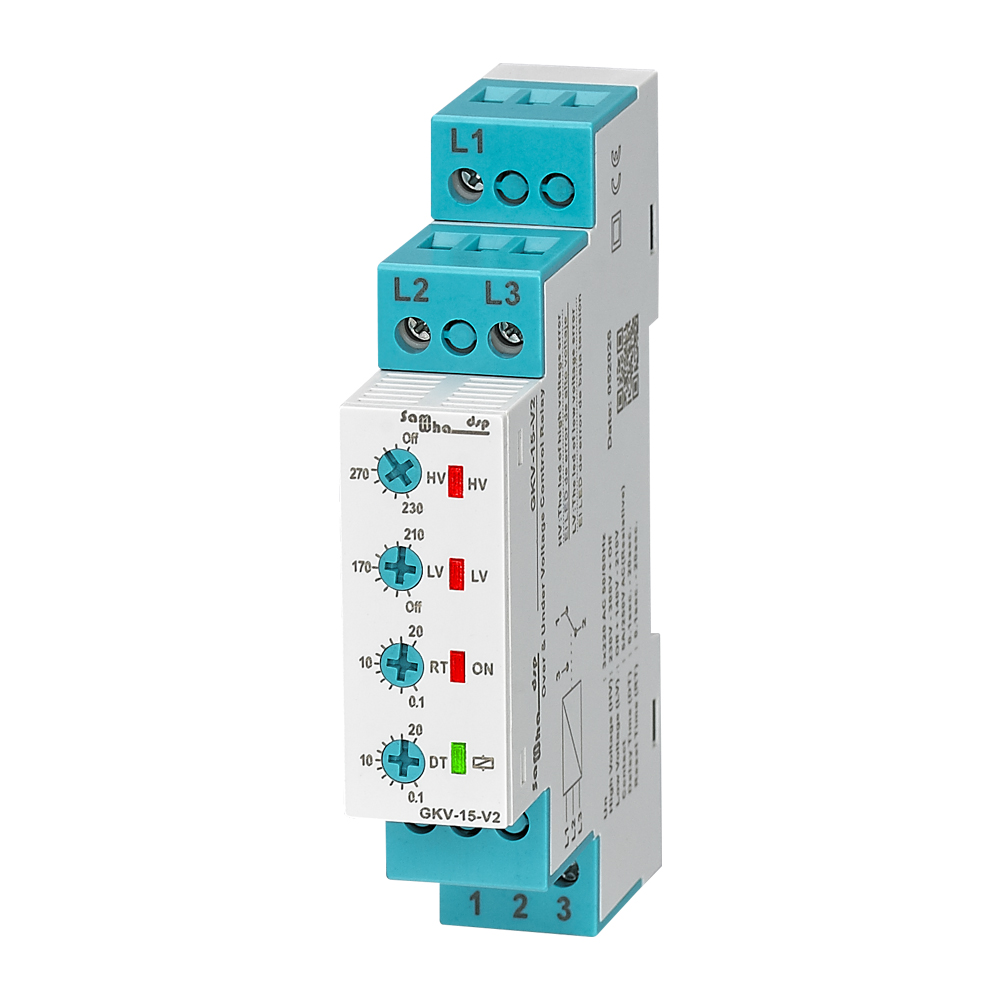

The
GKV-15-V2 is a
3-phase 220V over & under voltage control relay designed to protect industrial equipment from voltage abnormalities. It provides
high and low voltage protection, LED fault indicators, and adjustable delay and reset timers, ensuring reliable operation in 3-phase systems. Compact
DIN rail mounting allows easy installation in industrial panels.
- High & Low Voltage Protection: Activates relay and LEDs when voltage exceeds or drops below set limits.
- Fuse Protection: Protects equipment from surges exceeding 1.5× rated voltage.
- Phase Absence Protection: Detects missing phases in 3-phase system.
- LED Indicators: Four LEDs show high voltage, low voltage, and phase faults.
- Adjustable Delay & Reset: DT and RT configurable 0.1–20 sec.
- Operating Range: 3×220V AC, 50/60Hz; -20°C to +55°C.
- DIN Rail Mounting: Compact and easy to install.
- Reliable Contacts: 5A 250VAC resistive load.
