The

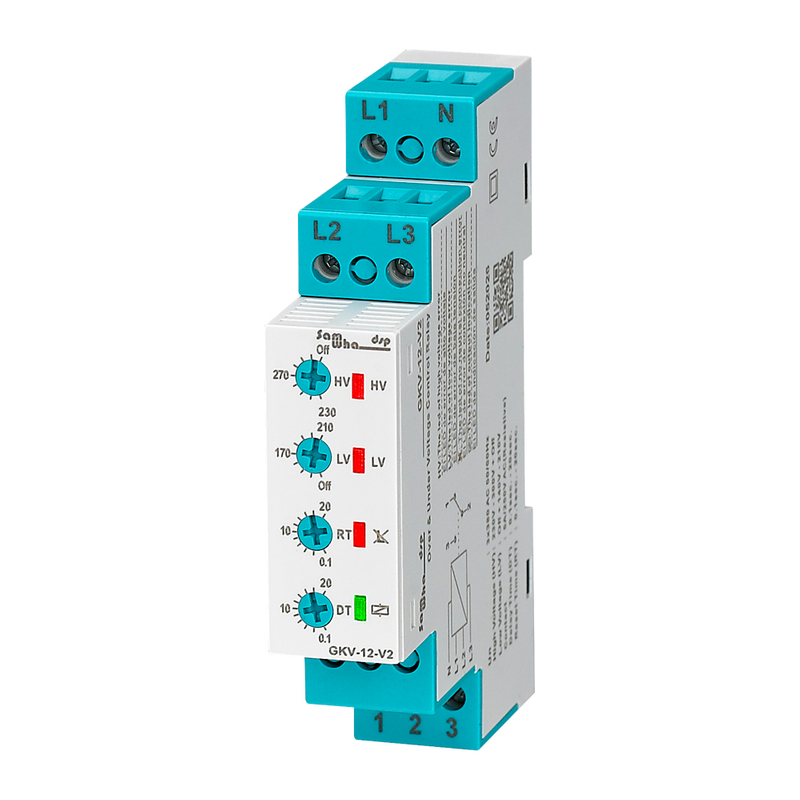

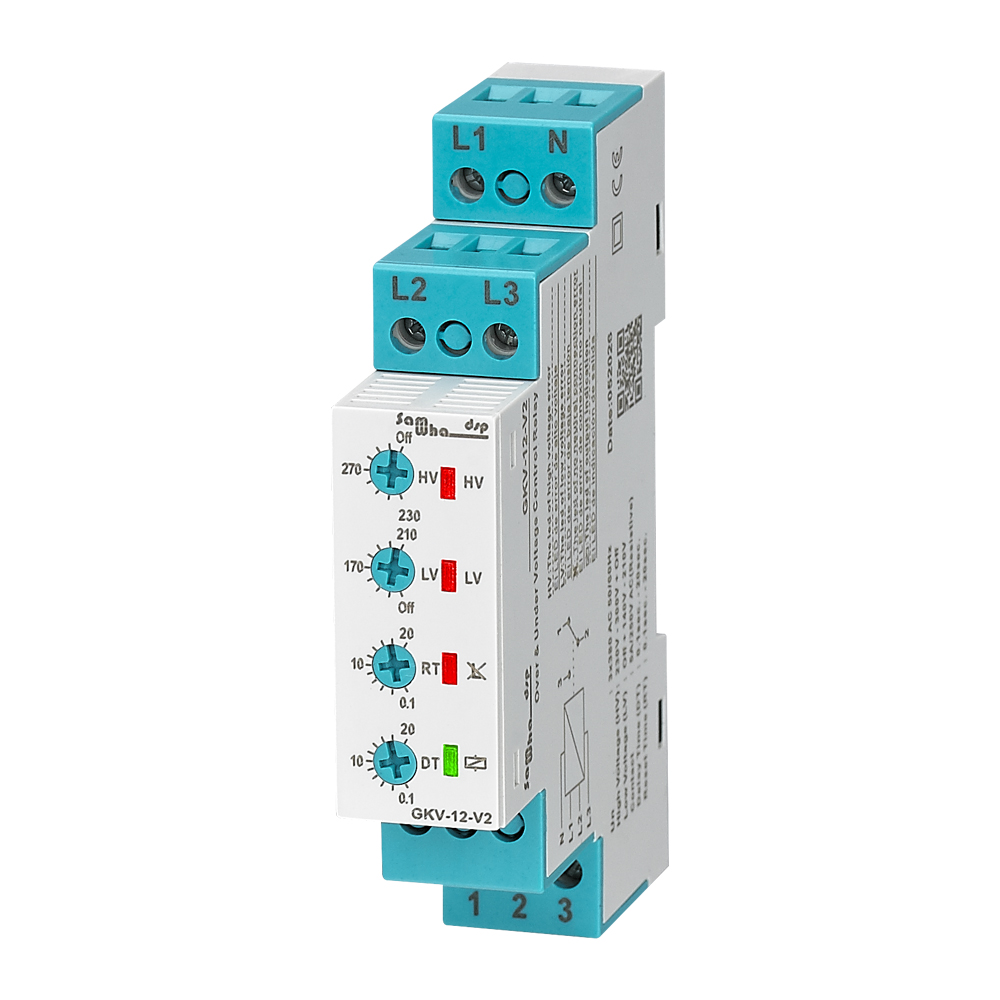

GKV-12-V2 is a reliable
over & under voltage control relay designed to protect electrical devices from abnormal voltage conditions. It features neutral absence protection, LED fault indicators, and adjustable delay and reset timers, ensuring safe operation in 3-phase industrial systems. Compact
DIN rail mounting allows easy installation in electrical panels.
·High & Low Voltage Protection: Relay activates and LED indicates when voltage exceeds or drops below set values.
·Fuse Protection: Protects equipment from voltage surges (1.5× rated voltage).
·Neutral Absence Protection: Relay does not operate if neutral connection is missing.
·LED Indicators: 4 LEDs show HV, LV, and neutral errors.
·Adjustable Settings: Delay Time (DT) and Reset Time (RT) configurable from 0.1–20 sec.
·Operating Range: 3x380V AC, 50/60Hz; -20°C to +55°C.
·Compact DIN Rail Design: Easy mounting with minimal space.
·Reliable Contacts: 5A 250VAC resistive load.
