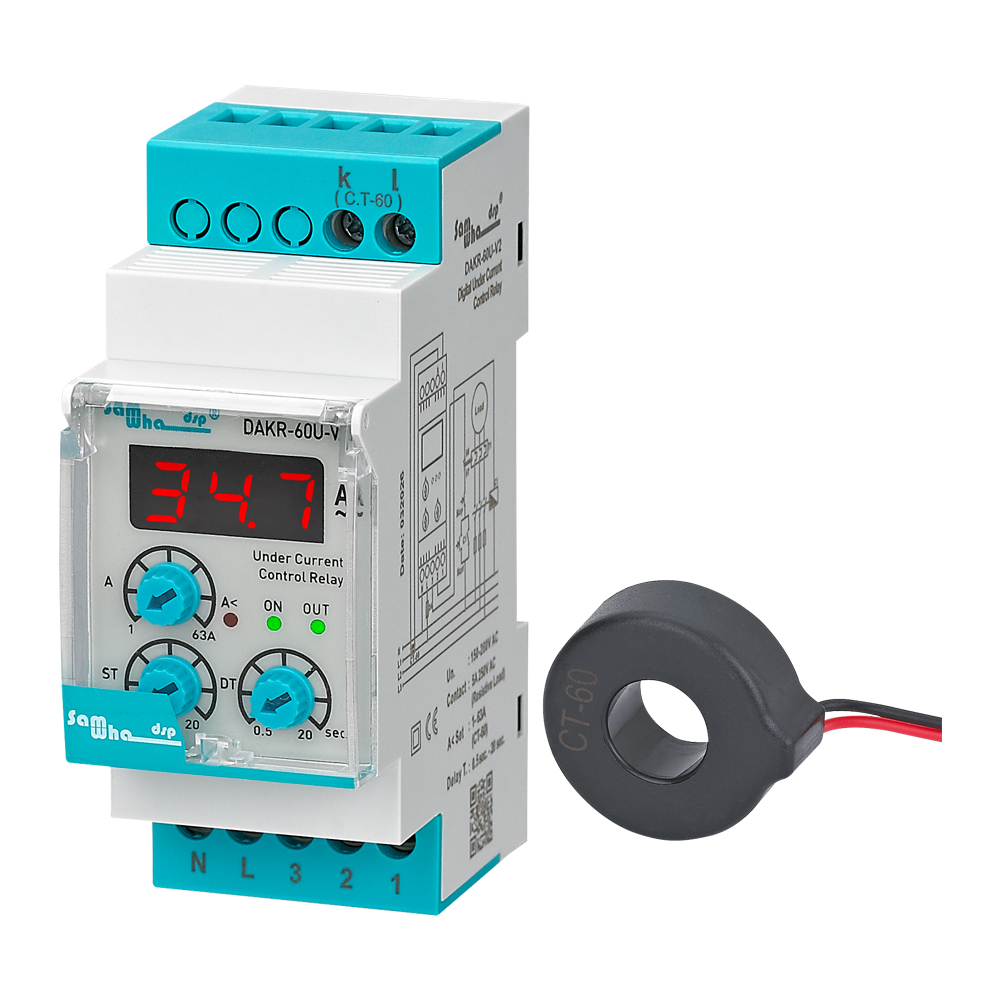

DAKR-60U-V2 is a digital auto-reset undercurrent protection relay designed for single-phase load current monitoring. With an external current transformer, the relay detects the operating current of the load and disconnects the output when the current falls below the preset threshold. After the current returns to the normal range, the relay automatically restores the output after the reset delay.
The device features a digital LED display, adjustable undercurrent setting, start delay, and auto-reset delay. It is suitable for pumps, motors, fans, compressors, conveyors, and other equipment requiring reliable undercurrent or no-load protection.
·Digital undercurrent protection relay with external CT
·Suitable for single-phase load current monitoring
·Adjustable undercurrent setting range: 1–63A
·Auto-reset function after current returns to normal
·Adjustable start delay to avoid false tripping during start-up
·Adjustable reset delay after undercurrent trip
·3-digit LED display for real-time current indication
·Ideal for dry-running protection of pumps
·Compact DIN rail mounting design
·Suitable for motors, pumps, fans, compressors, and control panels
