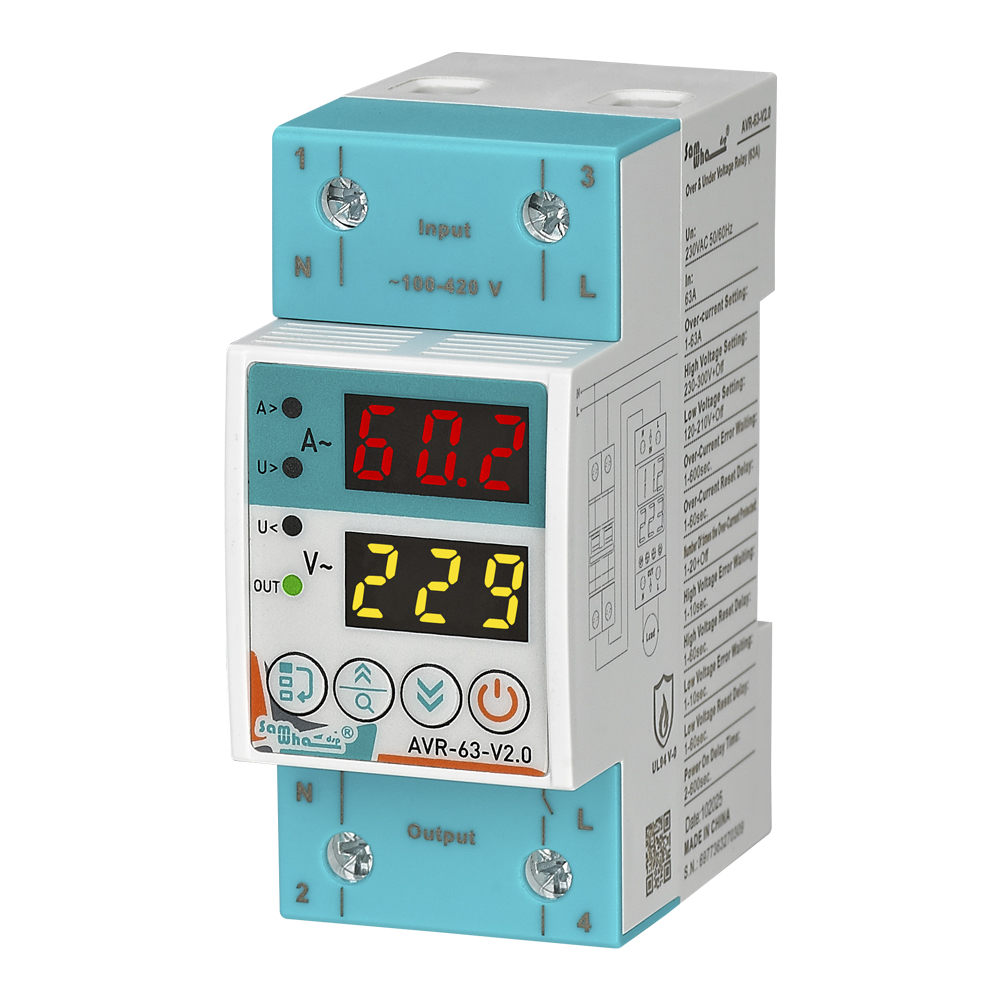

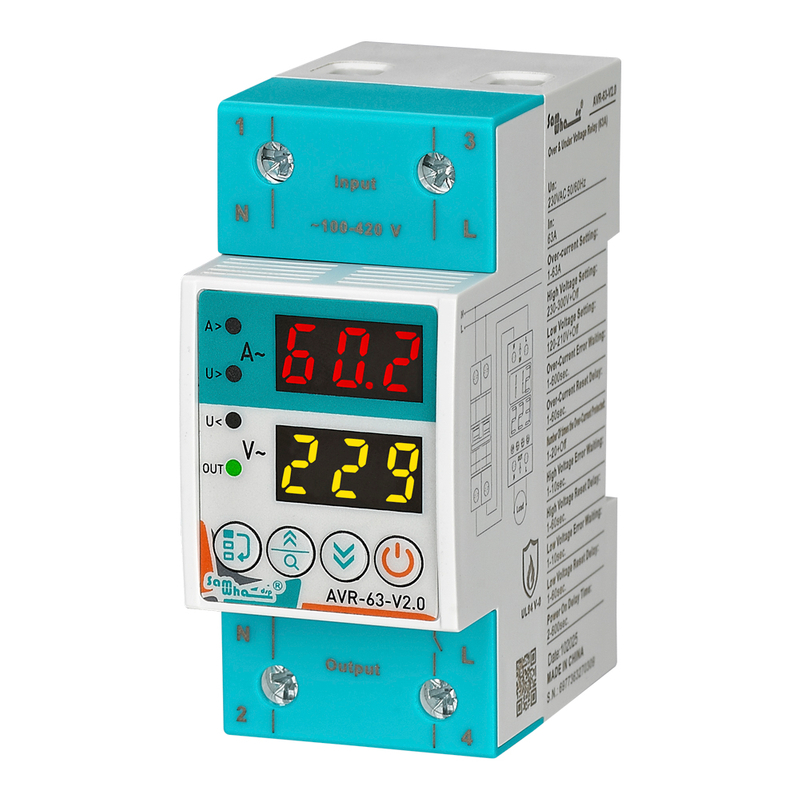

The AVR-63-V2 is a 63A single-phase protection relay providing over-voltage, under-voltage, and overcurrent protection. With adjustable settings and automatic recovery, it ensures safe and stable operation of electrical systems.
- Rated Voltage: 100–420VAC
- Protection Range: 0–450VAC
- Overcurrent Setting: 0.5–63A
- Over-voltage Setting: 230–300V + OFF
- Under-voltage Setting: 120–210V + OFF
- Overcurrent Delay Time: 1–600s
- Overcurrent Reset Delay: 1–60s
- Overcurrent Trip Count: 1–20 + OFF
- Over-voltage Delay: 1–10s
- Over-voltage Reset Time: 1–60s
- Under-voltage Delay: 1–10s
- Under-voltage Reset Time: 1–60s
- Power-on Delay: 2–600s
- Factory Reset: YES / ON
