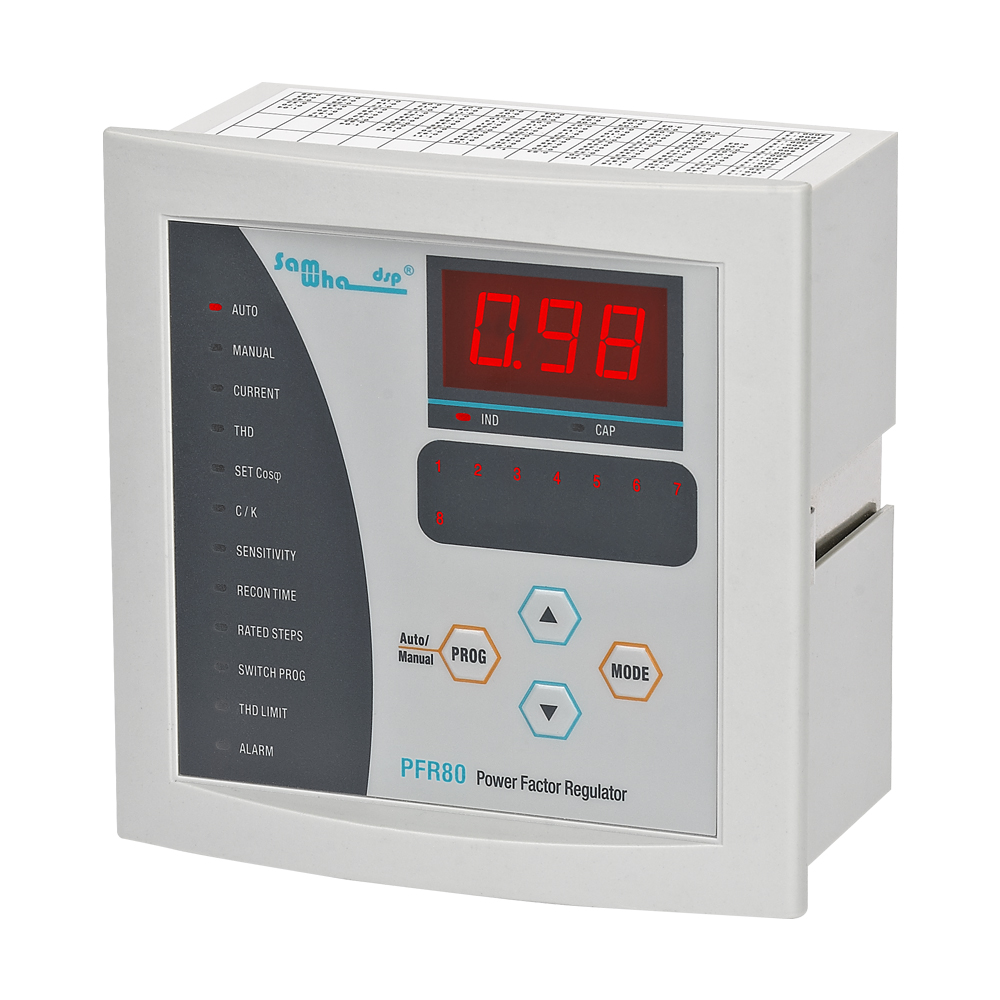

PFR80 Intelligent Reactive Power Compensation Controller

PFR80 Power Factor Regulator

The PFR80 Power Factor Regulator is an intelligent microprocessor-based controller designed for automatic reactive power compensation in industrial and commercial power systems.

It continuously monitors power factor, current, and harmonic distortion (THD), automatically calculates the optimal compensation requirement, and controls capacitor bank switching with high accuracy and stability.

Featuring automatic C/K adjustment, automatic CT polarity correction, programmable switching sensitivity, and multiple protection alarms, the PFR80 simplifies commissioning while improving compensation efficiency and reducing unnecessary switching cycles.

With advanced switching algorithms and intelligent monitoring functions, the PFR80 provides reliable capacitor bank control for modern electrical distribution systems.

·Intelligent Compensation Control

      Microprocessor-based automatic capacitor switching.

·Automatic Parameter Learning

     Auto C/K setting and automatic CT polarity correction.

·Real-Time Monitoring

     Displays power factor, current, and current THD.

·Flexible Switching Programs

      Multiple switching algorithms for different load conditions.

·Advanced Alarm Protection

     Over / under voltage, compensation alarm, harmonic alarm.

·Auxiliary Fan / Alarm Output

     Last step configurable for cooling fan or alarm output.

·IEC Standard Compliance

     Designed in accordance with IEC 61000-6-2.
